Zero Charge™ Heel and toe grounders

Shoe grounding straps provide dissipation of static charges for mobile personnel in such areas as wave soldering, kitting and QC. These reusable straps provide a continuous ground path between shoes and static-protected floors. A conductive rubber strap fits over the heel or toe and conductive nylon strap makes contact with the operator's body. Straps will no stick to shoes and feature a stretchy, adjustable band that guarantees a comfortable, secure fit for all day long. All models have build-in 1 Mohm resistor for added protection.

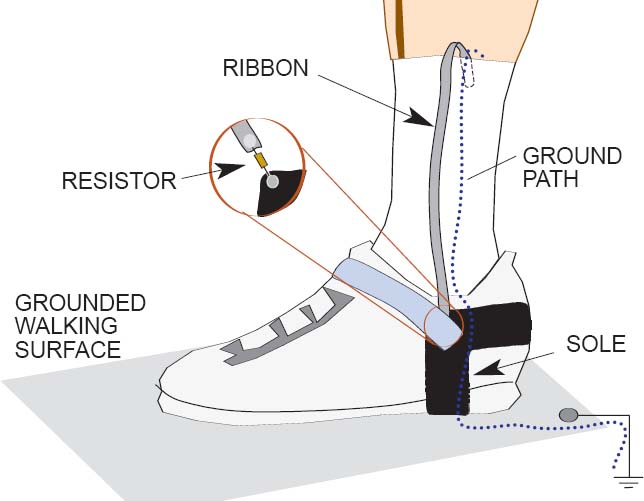

How Foot Grounders Work
Foot grounders discharge static from a person to ground by connecting the person to a grounded walking surface. A conductive ribbon placed inside the wearer’s shoe or sock makes electrical contact with the skin through perspiration. The ribbon is joined to a resistor which limits current should accidental exposure to electricity occur. The other end of the resistor is joined to a conductive sole. This sole contacts a grounded ESD floor mat or ESD flooring system. Foot grounders must be worn on both feet to maintain ground contact while walking. How Foot Grounders Work
Heel Grounder for designated work in Lead Free Areas.
Three layers rubber for durability and bright, green strap.
ASI-2G

ASI-2G
Green Heel Strap Dual layer anti-slip rubber designed for long wear, velcro green strap, 18" conductive multi-strap ribbon, 1Meg Resistor, Green. RTG < 10e6 -10e7. For use to distinguish Lead Free Areas

ASI-3R ASI-3R
Toe Grounder for use where heel grounders are not practical. Adjustable for various shoe sizes. RTG < 10e6 -10e7. Bottom-2 layer, non marking rubber

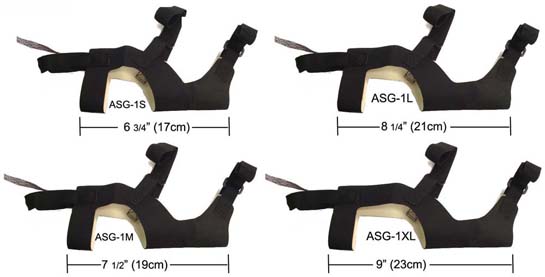

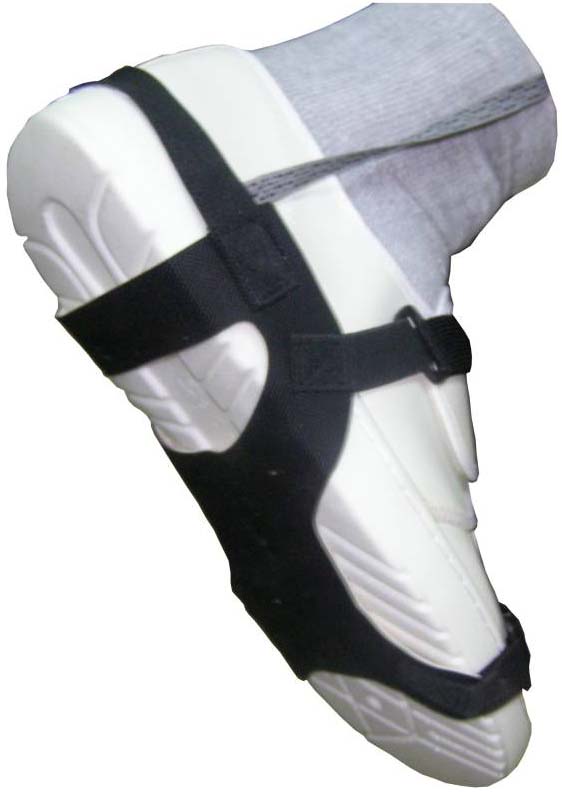

ASG-1
Full Rubber Cup Toe & Heel Grounder with D Ring
Conductive rubber with anti-slip texture.
Hoop & Loop stretch Velcro with D-ring across both the toe and foot for size adjustment.
Added 1 Mega or 2 Mega ohm resistors.
Rubber Strap: Outer surface: 103-4 Ω, Inter surface: 108-9 Ω
Ribbon: 103-4 Ω

ADH-005 ADH-005-100
Low Cost Disposable Heel Strap. For guests and temporary personnel. 100pcs/Pack
ADH-005-10
Low Cost Disposable Heel Strap. For guests and temporary personnel. 10pcs/Pack
ABH-901R ABH-901R
Heel strap with 1 Mohm resistor
AMHS-1
Heel strap with 1 Mohm resistor
ABT-111R ABT-111R
Toe strap with 1 Mohm resistor
ABH-906R
Heel strap with upper band and connecting wire with 1 Mohm resistor

Upper band creates comfort in wearing and assures contact with the body. No worry about loss of grounding. Connecting wire is long enough to place upper band under your knee.

ABH-914R
Heel strap with 1 Mohm resistor for medium and small shoe sizes

Anti-slip ESD rubber band with groves.

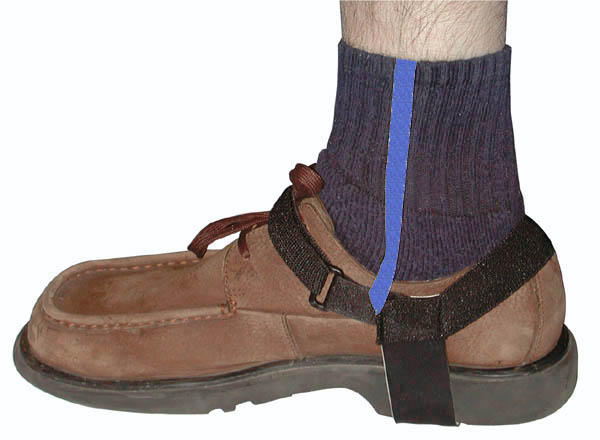

ABH-915R
Heel strap with 1 Mohm resistor for large (wide) shoe sizes

Anti-slip ESD rubber band with groves.
