Xtractor XF-300 Series - High Volume Entry Level Fume extraction systems
Features
  • High Volume Entry Level Unit.
  • The compact low cost systems are capable of generating high air flow rates from a range of bench top attachments.
  • Units can be positioned comfortably under a bench with a simple installation kit to connect to the most suitable extraction accessory.

A cost effective unit capable of extracting fumes, with optimal flow rates, for up to two soldering stations using any of the following attachments:

Maximum number of 50mm Arms, Cowls or Down Draft Trays - 2
Maximum number of 75mm Arms, Cowls or Down Draft Trays - 2

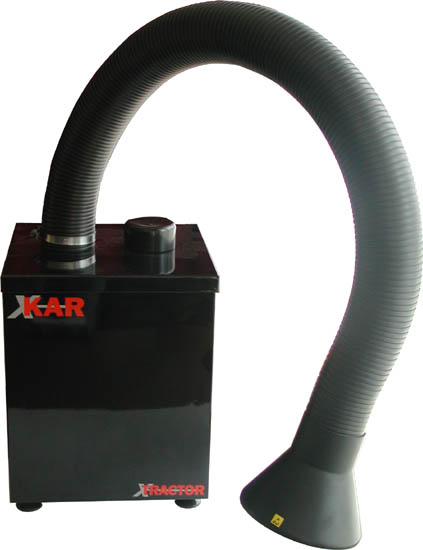

XF-301 XTRACTOR

XF-301 XTRACTOR

System includes:

  • XF-300 Base
  • XF-A75ESD 75 mm ESD Arm with Funnel

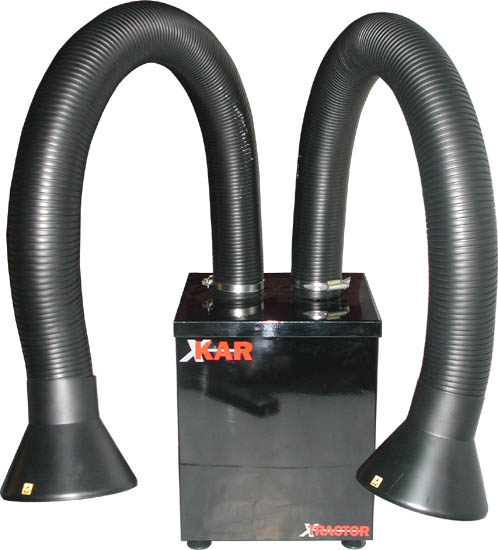

XF-302 XTRACTOR

XF-302 XTRACTOR

System includes:

  • XF-300 Base
  • XF-A75ESD 75 mm ESD Arm with Funnel - 2 pcs
Unit Specifications
Dimensions
(mm) HxDxW
Weight
Kg
Air Flow
(with filters)
Power
Unit
Voltage Noise Level
dBA
Filter
Efficiency
450x300x300 15 320m3h Radial Blower 115/230 V AC 52 95%
Optional accessories
  • XF-A75ESD - 75 mm ESD Arm with Funnel
  • XF-B75ESD - 75 mm ESD Arm with Bench Bracket and Funnel
  • XF-C75ESD - 75 mm ESD Cowl
  • XF-D75ESD - 75 mm ESD Down Draft Tray
  • Variable speed/flow control available
  • High efficiency filters available (up to 99.997% DOP)

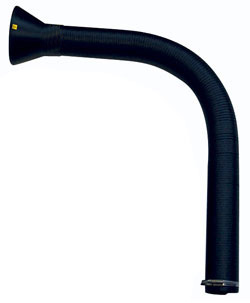

XF-A75ESD
75mm Stay Put Arms

The arms are made of black carbon loaded compressed polystyrene construction.

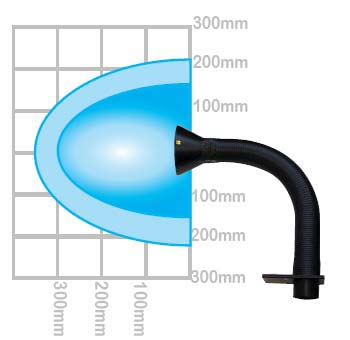

Diagrams above, highlight the capture area of the stay put arms when extracting at a flow rate of 120m3/hr (darker shading) and 190m3/hr for 75mm arms. These measurements were taken with the arm situated above the working area. Diagrams above, highlight the capture area of the stay put arms when extracting at a flow rate of 120m3/hr (darker shading) and 190m3/hr for 75mm arms These measurements were taken with the arm resting side-ways on the work surface.

XF-B75ESD

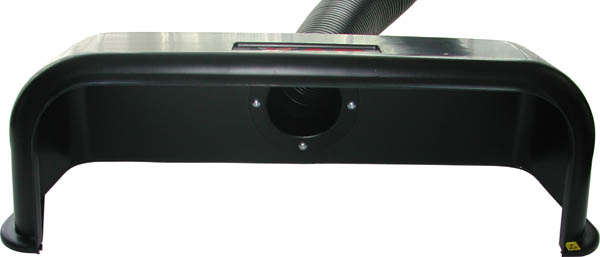

XF-C75ESD
XF-C75ESD
The 75mm ESD cowls are made of black conductive H.I. polystyrene construction.

Cowl dimensions: Width 560mm, Depth 180mm, Height 180mm

The capture area of the 75mm cowls is taken from in front of the cowls, shown opposite. The height of the capture area is 160mm.

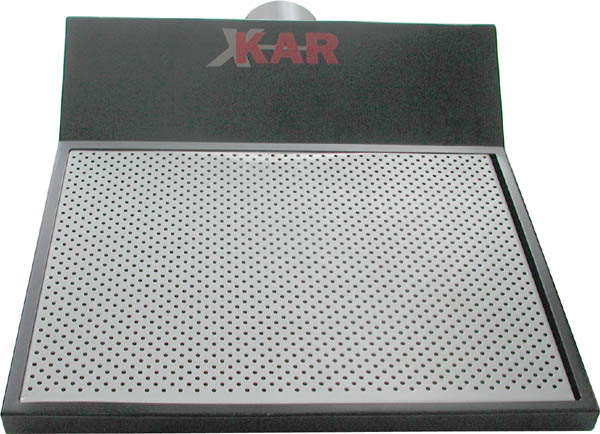

XF-D75ESD
XF-D75ESD
The 75mm downdraft tray carcass is made of aluminum, the tray is stainless steel.

Downdraft tray dimensions: Width 360mm, Depth 430mm, Height 90mm

The capture area is equal to the size of the stainless steel tray, which is; 340mm x 255mm. The tray will also capture fumes up to 100mm above the tray.
