Xtractor XF-200 Series - High Volume Level Fume extraction systems
Features
  • High Volume Unit
  • This range of High Volume systems accommodate the removal and filtration of a large air mass from the environment. When used in conjunction with our extensive range of arms, hoods, cabinets and flat bed extraction trays, hazardous processes can be undertaken in comfort and safety.
  • The system has a built-in silencer that achieve very low noise levels.

The System 200 is the smallest in the range of volume extraction systems. This compact unit is capable of running 1 x 50mm arm, cowl or down tray at 90M3h without the need for inflexible installation pipe work. Ideal for factories with changing demands, which result in production layout changes. The unit comes complete with flexible hose, table bracket and a unique flip top flush sealing mounting plate.

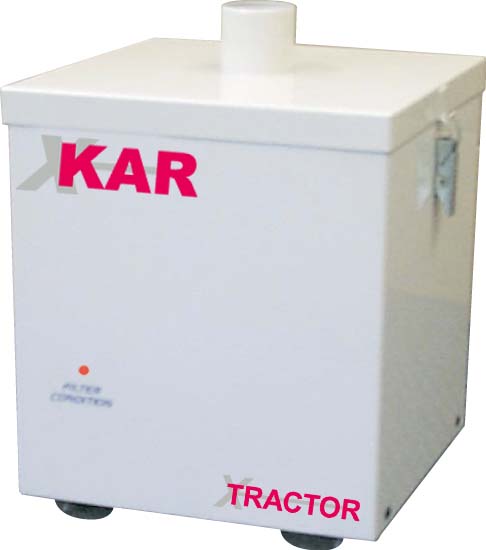

XF-200 XTRACTOR Single Arm High Volume Extraction Unit

Designed to extract fumes for one operator. This unit is ideal for factories with changing demand, resulting in production layout changes. It is fully comprehensive with an airflow of 90m³/h and 99.997% HEPA filtration.

Unit Specifications
Dimensions (mm) HxDxW 380x260x260
Weight Kg 7
Flow Rate with filters fitted 90m3h
Power Unit Radial Ventilator
Rated Output kW 0.06
Voltage 115/230 V AC
Noise Level dBA 54
Duct Size mm 50
Duct Run mtrs 3
Filter Efficiency 99.997%
down to 0.3 micron DOP

A compact unit that comes complete with:

  • 50mm ESD stay put extraction arm with funnel
  • Installation flex and Table Bracket
  • Unique flip top flush sealing mounting plate
  • Granulated Carbon Gas Filter
  • Filter Blocked Indicator
  • 99.997% HEPA Filtration

XF-200 Unit

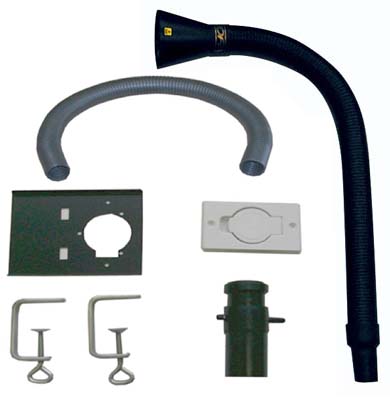

Installation kit

XF-250 XTRACTOR Dual Arm High Volume Extraction Unit

The System 250 ‘Dual’ Extraction unit is purpose built to protect two operators who are located either next to or opposite each other. It is fully comprehensive with an airflow of 90m³/h and 99.997% HEPA filtration.

Unit Specifications
Dimensions (mm) HxDxW 380x260x260
Weight Kg 10
Flow Rate with filters fitted 180m3h
Power Unit Radial Ventilator
Rated Output kW 0.14
Voltage 115/230 V AC
Noise Level dBA 54
Duct Size mm 50
Duct Run mtrs 3
Filter Efficiency 99.997%
down to 0.3 micron DOP

A compact unit that comes complete with:

  • Two 50mm ESD stay put extraction arm with funnel
  • Two Installation flex and Table Bracket
  • Two Unique flip top flush sealing mounting plate
  • Granulated Carbon Gas Filter
  • Filter Blocked Indicator
  • 99.997% HEPA Filtration

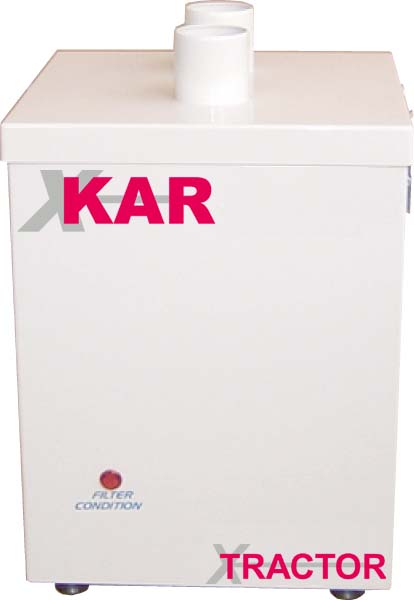

XF-250

Installation kit

How to order
Part Number Description
XF-200H Single Arm High Volume Extraction Unit with installation kit and extraction arm with funnel
XF-200 Single Arm High Volume Extraction Unit (no arms)
XF-250H Dual Arm High Volume Extraction Unit with installation kit and 2 extraction arm with funnel
XF-250 Dual Arm High Volume Extraction Unit with installation kit and extraction arm with funnel (no arms)
Optional accessories
  • XF-A50ESD 50 mm ESD Arm with Funnel
  • XF-N50ESD 50 mm ESD Arm with nozzle
  • XF-S50ESD 50 mm ESD Arm with slot
  • XF-C50ESD 50 mm ESD Cowl
  • XF-D50ESD 50 mm ESD Down Draft Tray
  • XF-T50 Table Bracket
  • XF-U50 Bracket unit connecting hose
XF-T50
XF-T50
XF-U50
XF-U50

50mm Stay Put Arms

The arms are made of black carbon loaded compressed polystyrene construction.

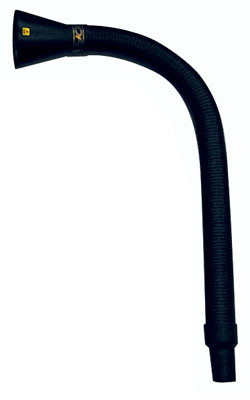

XF-A50ESD

 50mm Stay Put Arm with funnel 790mm in length, funnel 100mm in diameter

XF-N50ESD

50mm Stay Put Arm with nozzle 790mm in length, nozzle has a 90 degree slant and is 40mm in diameter

XF-S50ESD

50mm Stay Put Arm with slot 790mm in length, fish tail 200mm across and 25mm wide

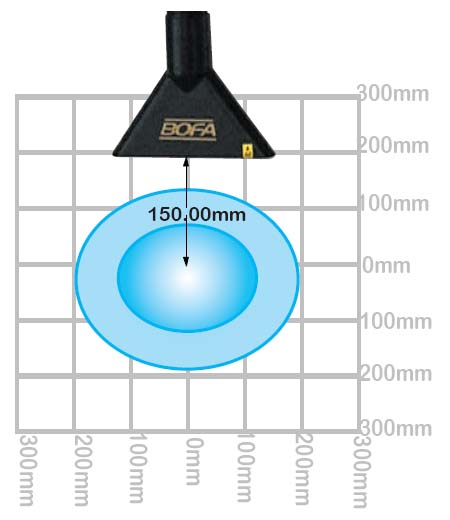

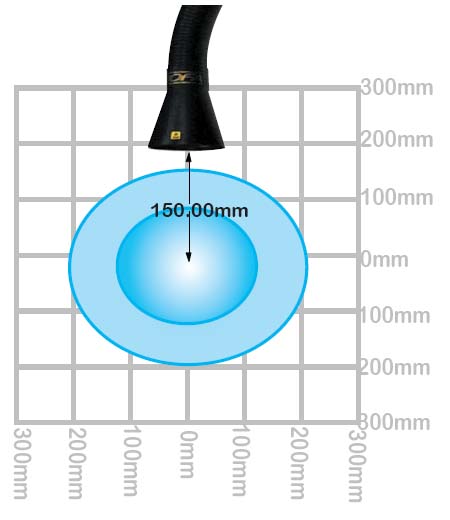

Diagrams below, highlight the capture area of the stay put arms when extracting at a flow rate of 60m3/hr (darker shading) and 100m3/hr. These measurements were taken with the arm situated above the working area.

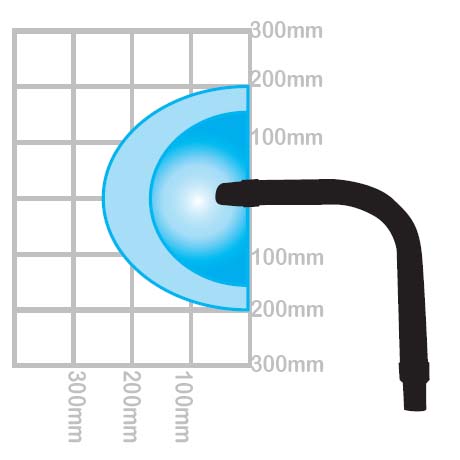

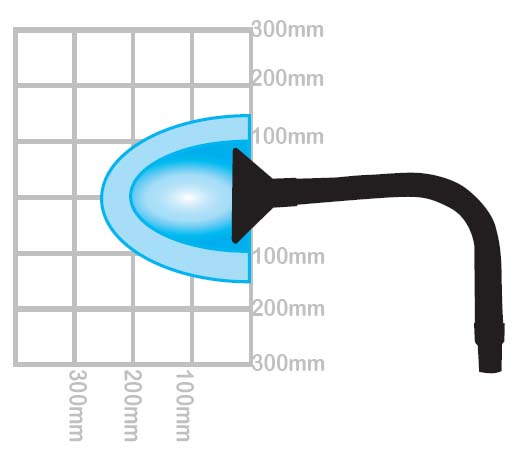

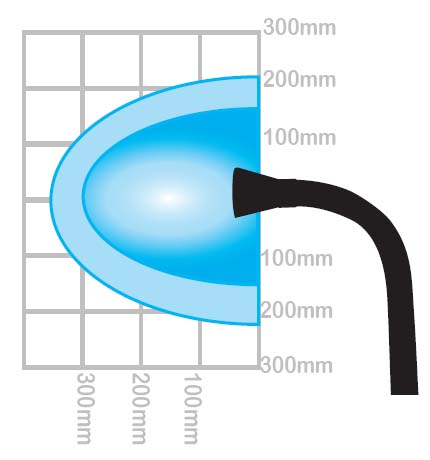

Diagrams above, highlight the capture area of the stay put arms when extracting at a flow rate of 60m3/hr (darker shading) and 100m3/hr. These measurements were taken with the arm resting on the work surface.
XF-C50ESD
XF-C50ESD
The 50mm ESD cowls are made of black conductive H.I. polystyrene construction.

Cowl dimensions: Width 350mm, Depth 200mm, Height 120mm

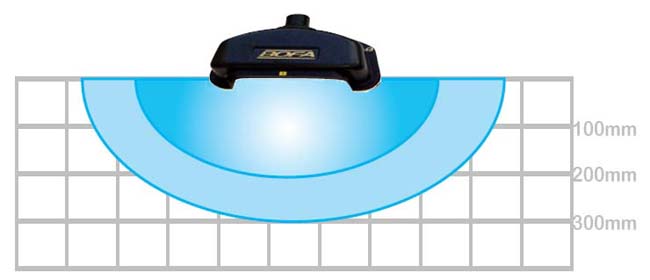

The capture area of the 50mm cowls is taken from in front of the cowls, shown opposite. The height of the capture area is 100mm.
XF-D50ESD
XF-D50ESD

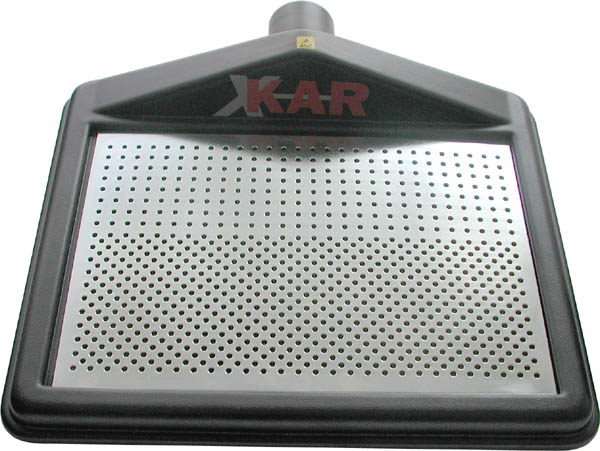

The 50mm downdraft tray carcass is made of conductive H.I. polystyrene, the tray is stainless steel.

Downdraft tray dimensions: Width 360mm, Depth 310mm, Height 75mm

The capture area is equal to the size of the stainless steel tray, which is; 290mm x 200mm. The tray will also capture fumes up to 100mm above the tray.
