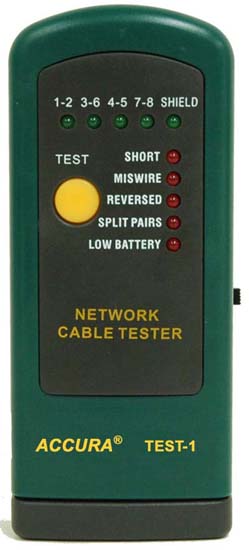

ACCURA™ Test-1 Network Cable Tester

The network cable tester is a small hand-held cable tester, which enables network professionals to quickly and easily verify the integrity of Ethernet twisted pair cables.

Features

  • Test device used with UTP ( Un-shielded Twisted Pair) and STP ( Shielded Twisted Pair) wiring.
  • Check continuity and configuration of wire with un-shielded and shielded module plugs.
  • Tests open circuits, shorts circuits, missed-wires, reversals and split pairs.
  • Shield detection which is used for testing  cable's shield integrity.
  • Main unit and one remote allow you to test T568A, T568B,10Base-T, and Token ring systems.
  • Quickly Debug and identify which cable pairs have a specific wiring fault.
  • 6 volt battery is installed in the main tester (Remote unit is un-powered)
  • Battery low indicator.
  • Cable length: Min: 0.4 m, Max: over 200m
  • Size: L x W x H: 125 x 55 x 30 mm
  • Weight: 125 g.
