X-KAR SMT Rework and Repair Equipment and Accessories

SMT Rework/Repair is a part of everyday life. We have to repair the boards during their assembly, during final assembly of products and while servicing the products after sales.
To do it quickly, and without damage to a board or parts one must have good and reliable tools and equipment. X-KAR Brand offers such equipment.

Smart, Process oriented, Competitively priced and Easy to use Reliable Tools.

How to choose the best Rework System Package

X-FineRework-LX - Rework System for boards up to 14" wide
  • Rework System Packages

X-FineRework-LX - Rework System for boards up to 14" wide

XFR Commander - Windows Based Program Bringing X-FineRework to another level

Other Rework Packages

FOCUS Series
  • Hot Air/Nitrogen Systems

FOCUS Series  - SMT Convection Rework Systems have been designed to perform safe and efficient rework of SMD and BGA components.
The FOCUS family includes: FOCUS "X", FOCUS "+", FOCUS "N2", and FOCUS.

SMT-ServiCE
SMT-ServiCE
  • Pre-heater Based Rework Systems
    Multi-function Rework Systems

SMT-ServiCE - Digital PID Control SMT Rework/Repair Unit with integrated Pre-heater

SMT Rework/Repair Unit designed to allow a novice to Rework or Repair complicated SMT, multi-layer PCBs quickly, without a danger of a damage to the board or components.

Bottom Side Pre-heaters
X-1003

XTC Profiler
XTC Profiler
  • Bottom Side Superior Pre-heaters

X-1001 Series - The Most Powerful and Cost Efficient large, middle and small size Area Pre-heaters on the Market Today. The must, for safe Rework/Repair of the multi-layer and large boards to do it safely and to do it right. The investment which nobody will regret. Unique, not found anywhere else critical features.

X-1003 - Digital, High Power PCB Pre-Heater for Rework of SMT Technology Boards, with very accurate six zone temperature control
Newest addition: Large Area Preheater for Motherboards and larger multilayer boards. P/N X-1003-230V

X-600 - Small Digital Convection PCB Pre-heater

XTC Profiler - Temperature Data Logger for monitoring rework process

Xmr Micro - Micro Rework System
Hot Air Pencil Units
  • Hot Air (Nitrogen) Pencils

Hot Air Pencil Units - Hot Air Pencil / Iron offers unique combination of convection and conduction tools. Wide range of air flow (0,5 to 4.5 l/min), indestructible heater, quiet operation.
 The Hot Air Pencil family includes:
XmR Micro - Micro Rework System
XHP-300 - Hot Air Pencil/Iron
XHP-200 - Hot Air Pencil (Nitrogen)
XHP-N2 - Hot Air Pencil/Iron

  • Hot Air Tool Precision-Adjustment Tool Holders - XK Series

XK-4 - Tool Stand with fine X-Y positioning, rotation and up/down Z-axis movement
(dual knob, for left and right handed operators).
XK-3 - Tool Stand with precise rotation and up/down Z-axis movement
(dual knob, for left and right handed operators).
XK-2 - Tool Stand with up/down Z-axis movement
(dual knob, for left and right handed operators).
XK-1 - Tool Stand with up/down Z-axis movement (right handed knob)

XURB Universal Re-balling Unit
Re-balling Set allows solder balls to be restored to custom specified BGA or CSP components after residual solder has been removed.
X-BGA-DP - Dipping Plate System Set

XIL-2
XIL-2

XIL-2 - High Intensity, long life Illumination System
XK-AL Series - Series Hot Air Tool Precision-Adjustment Tool Holders with Auto Lift
XS-2 - ESD Base with Tool Holder allowing Z-axis Control
XKB Base - Steel plate lined with ESD Rubber accommodating XK Top tool holders and allowing to use magnetic board supports XBB-2

XU-5 - Open Frame Board Holder with X-Y micrometer
XU-MINI - Irregular Shape PCB Holder
  • Open Frame Board Holders

XU-5 - Open Frame Board Holder with X-Y micrometer positioning of PCB for boards up to 14" wide
XU-1S - Universal, Retractable Board Holder for boards up to 12" wide
XU-Mini - Irregular Shape PCB Holder (Will handle boards up to 10" wide)
XCBH-1 - Board Holder for Cellular Phone Boards
XU-4 - Adjustable Board Holder
XU-1, XU-2, XU-3 - Basic Retractable Board Holders for boards up from 12" to 21” wide.
X-BB1s - Basic Board Holder Set (Includes 2 XBB1 supports)
X-BB2s - Basic Board Holder Set (Includes 2 XBB2 supports)

XVP-200 Vacuum Pick-Up System
XVP-200
  • Vacuum Pick-Up Solutions

XVP-200 - Vacuum Pick-Up System. Universal Vacuum Pick-Up Tool for manual placement of any kind of SMD components and components handling operations.
XVP-100 - Vacuum Pick-Up Pencil

XCP-01 - Semi-Automatic Vacuum Pick-up
XUT-1 - Universal Tripod
AVP-50 - Manual Vacuum Pick-Up Tool
and more....

XCP-01 Semi-Automatic Vacuum Pick-up XUT-1 Universal Tripod AVP-50 Manual Vacuum Pick-Up Tool
XCP-01 XUT-1 AVP-50
XDP Series - Fluid Dispensing System

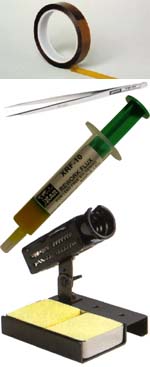

ST-76 and ST-77 High Quality Soldering Stands
A-PCBH PCB Storage Rack (ESD)
Precision Tweezers
X-Wick
Dispenser
SA-10 Solder Assist (6 pc set)
XF Series ESD Safe Bench Top Fume Absorber
ESD Tweezers with quick change Dissipative Tips
AMT-1.5 Antistatic Masking Tape, 1-1/2"W
XRF-10 - No Clean, Lead Free Paste Flux For Lead Free soldering. Excellent tack.
