Products > Goot > ESD Professional > PX-251 AS

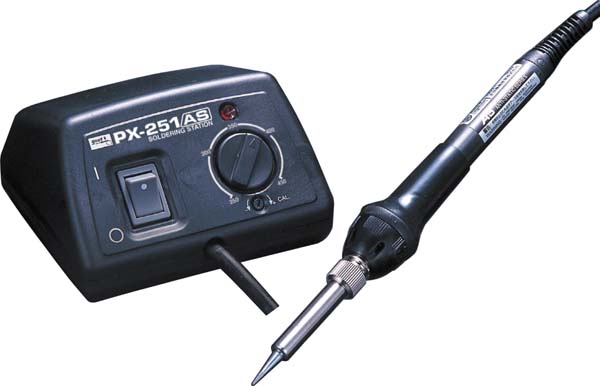

Goot BrandAntistatic Soldering Station PX-251 AS

VARIABLE TEMPERATURE CONTROL
WITH HIGH POWER IRON

Features

The soldering unit is separate from the controller and has the same high power of the PX-2 series. This allows variable temperature setting from 2500C to 4500C. The soldering unit is small and light weight with a silicon grip cover that is comfortable and reduces fatigue during continuous soldering.

Click to enlarge image
  • TEMPERATURE CALIBRATION FUNCTION
    A temperature calibration dial is incorporated as standard. This ensures accurate temperature calibration after tip or heater replacement.

  • EASY REPLACEMENT OF TIP AND HEATER
    As the heater has a connector, replacement is easy.

Specification / Replacement Parts

MODEL

PX-251 AS

Voltage 110, 220-240V AC
Power Consumption 70W
Temp. setting range 250oC-480°C
Insulation Resistance Over 100Mohm
Dimensions Soldering Unit 205mm (w/o cord)
Control Unit 85(L) x 100(W) x 57(H) mm
Weight Soldering Unit 57 g (w/o cord)
Control Unit 266 g (w/o cord)
Control Unit to Soldering Unit Cord Length 1.2 m

Parts

PX-251 AS Heater  PX-25H

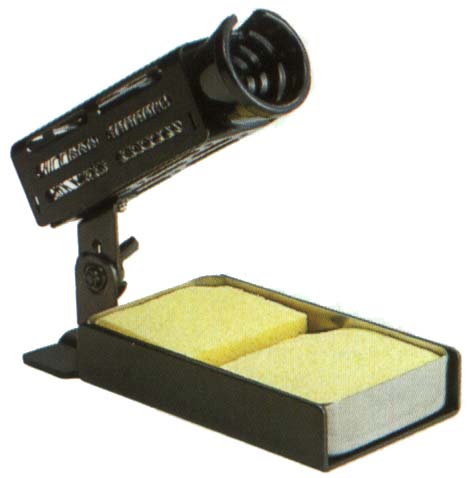

Recommended Soldering Stand Model ST-77

ST-77

PX-251 AS Collar TQ-77NUT
Heater Barrel TQ-77HP
Ground Plug Adapter P-10

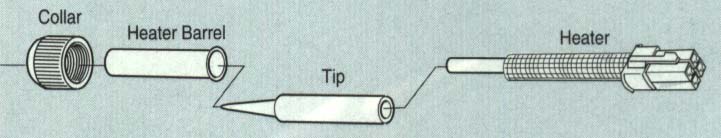

Click to enlarge image PX-251 AS Heater

Available Tip Shapes
