Soldering Irons CXG-15/25/28/32/38
LONG LIFE, HIGH INSULATION AND LOW LEAKAGE CURRENT HIGH CAPACITY CERAMIC HEATER
Features
|
|
Specification / Replacement Parts
|
MODEL |
Approx. Tip temp. /°C | Voltage / V | Consumption / W | Length / mm | Weight / g |
| CXG-15 | 420 | 110-130, 220-240 AC | 15 | 215 | 60 |
| CXG-25 | 460 | 110-130, 220-240 AC | 25 | 220 | 70 |
| CXG-28 | 480 | 110-130, 220-240 AC | 28 | 235 | 75 |
| CXG-32 | 500 | 110-130, 220-240 AC | 32 | 235 | 80 |
| CXG-38 | 510 | 110-130, 220-240 AC | 38 | 235 | 90 |
Spare Parts
CHG 15 and 25 Heater |
||
|
CXG-15 Heater | CXG-15H |
|
CXG-25 Heater | CXG-25H |
|
CXG-15 Heater Barrel | CXG-15HP |
|
CXG-25 Heater Barrel | CXG-25HP |
|
CXG-15 Collar | CXG-15NUT |
|
CXG-25 Collar | CXG-25NUT |
|
CXG-15 Spacer | CXG-15SS |
|
CXG-25 Spacer | CXG-15SS |

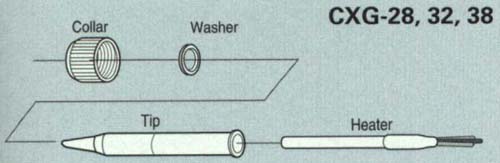

CHG 28, 32 and 38 Heater |
||
|
CXG-28 Heater | CXG-28H |
|
CXG-32 Heater | CXG-32H |
|
CXG-38 Heater | CXG-38H |
|
CXG-28 Collar | CXG-28NUT |
|
CXG-32 Collar | CXG-32NUT |
|
CXG-38 Collar | CXG-38NUT |
|
CXG-28 Washer | CXG-28WS |
|
CXG-32 Washer | CXG-32WS |
|
CXG-38 Washer | CXG-38WS |
| CXG-15/25 Replacement Tips | CXG-28/32/38 Replacement Tips |
|
|
|
